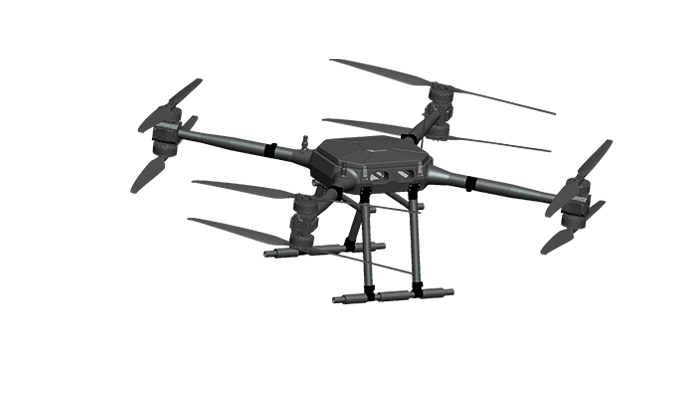

Zhongyao X-200 electric four-axis eight-rotor UAV

The Zhongyao X-200 is our company's latest 100kg transport drone, a high-performance quadcopter with eight propellers specifically designed for industrial applications. Featuring a high-power brushless motor and high-strength carbon fiber propeller blades, it delivers exceptional power output and stability. Its modular design enables quick disassembly and assembly, making it adaptable to diverse scenarios including logistics transportation, emergency firefighting, and equipment inspection. Equipped with an intelligent flight control system, the drone can autonomously plan flight paths, navigate obstacles, and transmit real-time data. With a single flight duration exceeding 70 minutes (empty payload) and a maximum control radius of 30 kilometers, it meets demanding operational requirements in complex environments. The drone prioritizes safety and reliability through multiple redundant electronic systems and dual-band communication technology, ensuring stable signal transmission and prioritized command response during flights. For heavy payload operations, the body integrates multiple sensors and adaptive balancing algorithms that dynamically adjust flight posture, guaranteeing stable heavy-load transportation.

70min

Endurance

5Level

Wind resistance rating

100Kg

Maximum mission payload

36km/h

Maximum flight speed

Product Features

Ultra-large load capacity

100Kg industrial transport UAV

Super power system

High power brushless motor + high strength carbon fiber four shaft eight paddle design, both strong power and stability

Excellent endurance performance

Single empty endurance ≥70 minutes, maximum control radius 30 km

Modular

Supports rapid disassembly and assembly, and can be deployed in multiple scenarios

Heavy load optimization

Multiple sensors + adaptive balance algorithm, dynamically adjust flight attitude to ensure heavy load stability

High reliability

With reliability as the core, flight safety is guaranteed by hardware redundancy and intelligent algorithm

Flight control functions

Autonomous route planning, obstacle avoidance navigation, real-time data back transmission

Communication technology

Dual frequency communication + multiple redundant electronic system to ensure signal stability and priority response of instructions

Strong environmental adaptability

Adaptability to complex environment and support high intensity operation

Product Parameters

Aerobat Name Parameter

Wheel base 2550MM

Outline dimension 1870*2100*900mm (expanded size) 1100*1200*900mm (folded size, folded blade) (Lift gear height 630mm)

Weight 52KG (excluding battery)

GNSS support

Positioning accuracy (RMS) Vertical: Horizontal: Vertical: Horizontal: ±1M (GNSS single point) ±1.5M (GNSS single point) ±0.8M(DGPS) ± 1M（DGPS） ±0.8M(DGPS) ± 1M（DGPS） ±1.5CM+1PPM(RTK) ±1.0CM+1PPM(RTK)

Orientation accuracy (RMS) 0.5°

Maximum rate of ascent 3M/S

Maximum vertical descent speed 2M/S

Maximum horizontal flight speed 10M/S

Maximum flight altitude Ordinary paddle 2000M, plateau paddle 4000M

Maximum wind speed 10M/S (5th wind class)

Max-endurance Air load 70 (min) H13 50kg 38(min)H13 100kg 20（min)H13

Protection rating/rain protection IP45/ light rain

Radar detection range 1.5M-50M

Operating ambient temperature (-10℃-55℃)

Telecontroller Internal battery 13400mAh

Duration of flight 8 hours

Service frequency 2.4015 GHz - 2.4815 GHz 5.725 GHz - 5.850 GHz

Transmitting power 2.4/5G

Maximum communication distance (no interference, no occlusion) Suburban flight height 120m low occlusion, medium interference communication distance: 10-15KM Flight altitude over the sea: 120m without obstruction, low interference communication distance: 30-40KM

Maximum resolution of downscaling image 1920×1080

Smart battery 24S Capacity 33ah*4

Nominal voltage 88.8V

Energy 285.2wh/kg

Weight 10kg*4

Size 215*176*132mm

Discharge rate 3C

Packing chest Packaging box size 1300*1120*950mm (without wheels, wheel height 120mm)
